Products

Stainless Steel Pipe Fitting
Stainless Steel Pipe Fitting
Stainless Steel Pipe Fitting
Stainless Steel Pipe Fitting
Stainless Steel Pipe Fitting
Stainless Steel Pipe Fitting
Stainless Steel Pipe Fitting
Stainless Steel Pipe Fitting
Stainless Steel Pipe Fitting
Stainless Steel Pipe Fitting
1.Product:Cap, steel pipe cap, stainless steel pipe cap
Size:1/2" - 80"
Material:A403 WP304/304L,321,316/316L,317L etc
Standard:ASME B16.9, ASME B16.28, ASME B16.25, MSS SP-75 DIN2605 JISB2311 JISB2312 JISB2313, BS, GB, ISO
2.Product:ELBOW, steel elbow, stainless steel elbow
Size:1/2"-80"
Material:A403 WP304/304L,321,316/316L,317L etc
Standard:ASME B16.9, ASME B16.28, ASME B16.25, MSS SP-75 DIN2605 JISB2311 JISB2312 JISB2313, BS, GB, ISO
3.Product:TEE, steel tee, stainless steel tee
Size:1/2"-80"
Material:A403 WP304/304L,321,316/316L,317L etc
Standard:ASME B16.9, ASME B16.28, ASME B16.25, MSS SP-75 DIN2605 JISB2311 JISB2312 JISB2313, BS, GB, ISO
4.Product:FLANGE, steel flange, stainless steel flange
Size:1/2" - 144"
Material:A403 WP304/304L,321,316/316L,317L etc
Standard:ASME B16.9, ASME B16.28, ASME B16.25, MSS SP-75 DIN2605 JISB2311 JISB2312 JISB2313, BS, GB, ISO

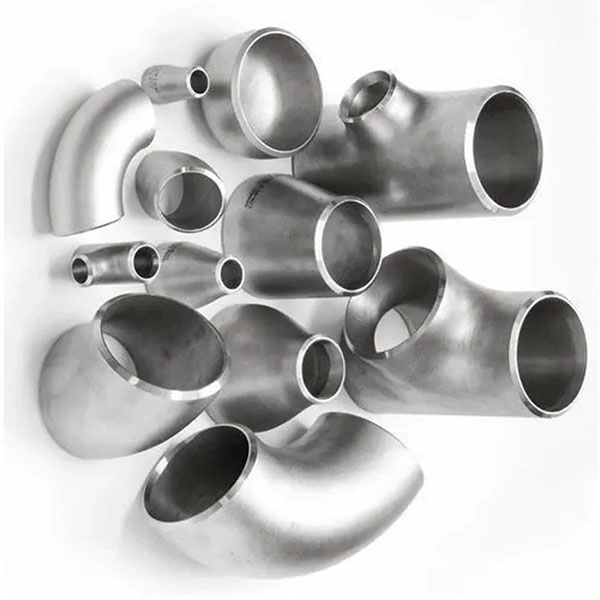

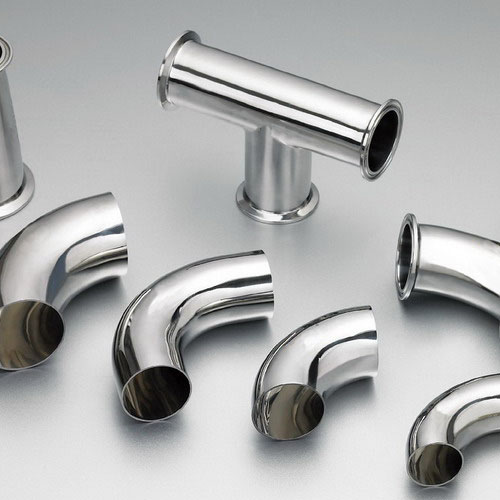

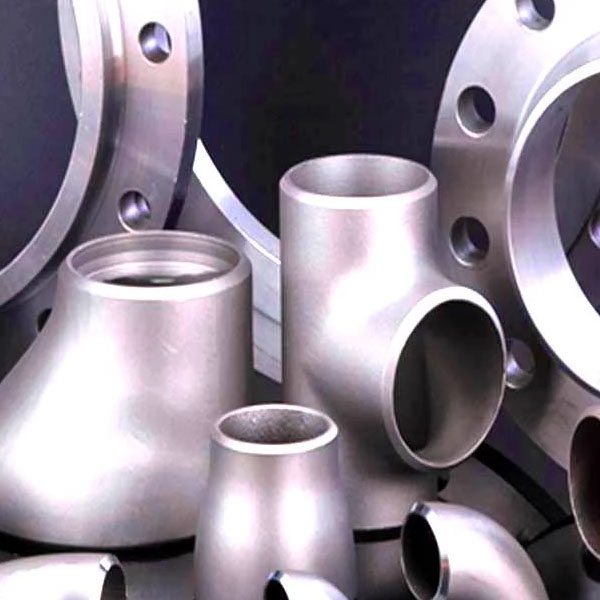

Product Description of Stainless Steel Pipe Fitting

Stainless steel pipe fittings are corrosion-resistant connectors (such as elbows, tees, reducers, and caps) made of chromium-nickel alloys, such as ASTM A182 F304 or F316L. Unlike carbon steel (which is prone to rust) or alloy steel (primarily used in high-temperature environments, not humid and corrosive environments), stainless steel performs exceptionally well in chemical, marine, food, and cryogenic applications due to its self-healing oxide layer. While stainless steel is more expensive than both carbon and alloy steel, it is the only option if piping systems require resistance to rust, acid corrosion, salt water, or sanitary contamination over a long service life.


Standard: ASME B16.9, ASME B16.28, ASME B16.25, MSS SP-75 DIN2605 JISB2311 JISB2312 JISB2313, BS, GB, ISO."

In the manufacturing process, solution-treated 316L wire is used and cold drawn to enhance the strength of the raw material, followed by cold heading and rolling processing to ensure stable performance and high strength.


Key Features of Stainless Steel Pipe Fittings


Feature CategoryCore Advantage
① Corrosion ResistanceChromium forms a self-healing oxide layer — resists rust, chemicals, saltwater (Mo-bearing grades resist chloride attack)
② High-Temperature PerformanceContinuous service up to 1500°F (816°C) — far exceeds carbon steel (800°F limit)
③ Low-Temperature & Cryogenic ToughnessAustenitic grades remain tough at -452°F (-269°C) — carbon steel becomes brittle
④ Hygienic & SanitarySmooth, non-porous surface resists bacteria; no leached contaminants — ideal for food/pharma
⑤ Strength & DuctilityTensile strength 75–85 ksi, elongation 30–50% — high strength plus high plasticity
⑥ WeldabilityAustenitic grades (304/316) weld excellently; low-carbon versions (304L/316L) require no post-weld heat treatment
⑦ Aesthetic & DurableNo painting needed — maintains bright metallic finish; service life 30–50 years
⑧ Lifecycle CostHigher initial cost, but very low maintenance — lower total long-term cost than carbon steel


Types of Stainless Steel Pipe Fittings

Stainless Steel Pipe Fitting of Cap

Product

Cap

Size

1/2" - 80"

Material

A403 WP304/304L,321,316/316L,317L etc

Standard

ASME B16.9, ASME B16.28, ASME B16.25, MSS SP-75 DIN2605 JISB2311 JISB2312 JISB2313, BS, GB, ISO

Thickness

SCH10,SCH20,SCH30,STD SCH40,SCH60, XS, SCH80., SCH100,SCH120, SCH140,SCH160, SCHXXS

Surface

Anti-rust oil, clear lacquer, Black lacquer, Yellow lacquer,hot-dipped Galvanized,electrical galvanized

Connection

Welding, Threaded

Process

Forging+machining+heating Treatment

Certification

ISO, CE, TUV

Application

Petroleum,chemical,power,gas, metallurgy, shipbuilding, construction, etc

Packing

in wooden cases or pallets,or as per clients' requirements

Special Design

available as the requirement of customer

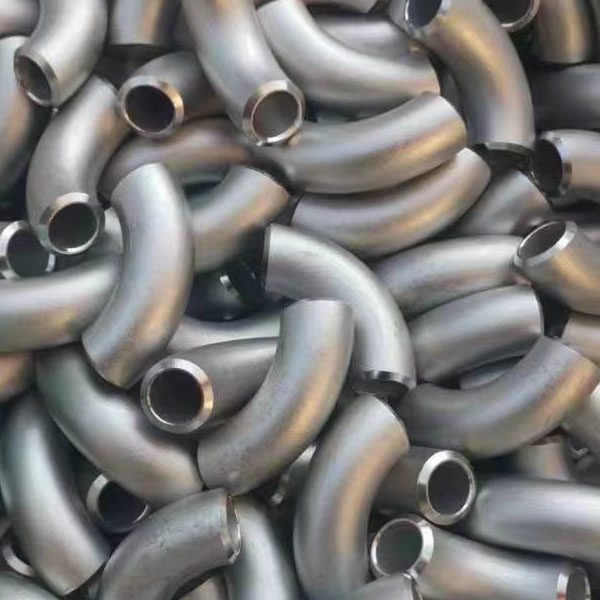

Stainless Steel Pipe Fitting of Elbow

Product

ELBOW

Size

1/2"-80"

Material

A403 WP304/304L,321,316/316L,317L etc

Standard

ASME B16.9, ASME B16.28, ASME B16.25, MSS SP-75 DIN2605 JISB2311 JISB2312 JISB2313, BS, GB, ISO

Thickness

SCH10,SCH20,SCH30,STD SCH40,SCH60, XS, SCH80., SCH100,SCH120, SCH140,SCH160, SCHXXS

Surface Treatment

Sand Rolling, Sand Blasting ,Acid Cleaning

Finsh

Satin/Mirror

Angle

22.5 deg, 30deg,45 deg,90 deg,180 deg, 1.0D, 1.5D, 2.0D, 2.5D, 3D, 4D, 5D, 6D, 7D-40D

Certification

ISO, CE, TUV

Application

Petroleum, chemical,power, gas, metallurgy, shipbuilding, construction, etc

Packing

in wooden cases or pallets,or as per clients' requirements

Special Design

available as the requirement of customer


Stainless Steel Pipe Fitting of Tee

Product

TEE

Size

1/2"-80"

Material

A403 WP304/304L,321,316/316L,317L etc

Standard

ASME B16.9, ASME B16.28, ASME B16.25, MSS SP-75 DIN2605 JISB2311 JISB2312 JISB2313, BS, GB, ISO

Thickness

SCH10,SCH20,SCH30,STD SCH40,SCH60, XS, SCH80., SCH100,SCH120, SCH140, SCH160, SCHXXS

Surface Treatment

Sand Rolling, Sand Blasting ,Acid Cleaning

Finsh

Satin/Mirror

Testing

Direct reading spectrometer, Mechanical testing, Magnetic particle inspection, etc

Certification

ISO, CE, TUV

Application

Petroleum,chemical,power,gas,metallurgy, shipbuilding, construction, etc

Packing

in wooden cases or pallets,or as per clients' requirements

Special Design

available as the requirement of customer

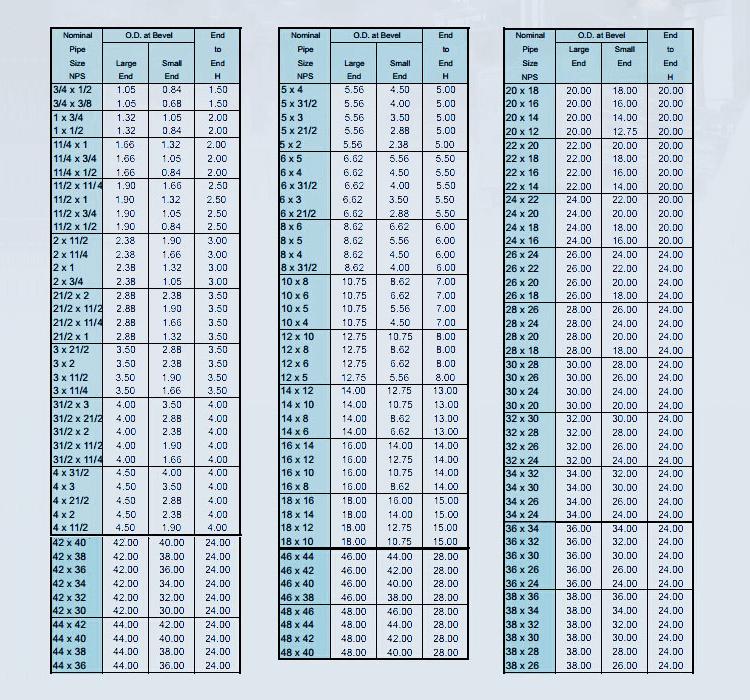

Dimension of Stainless Steel Pipe Fitting

stainless steel pipe fitting1

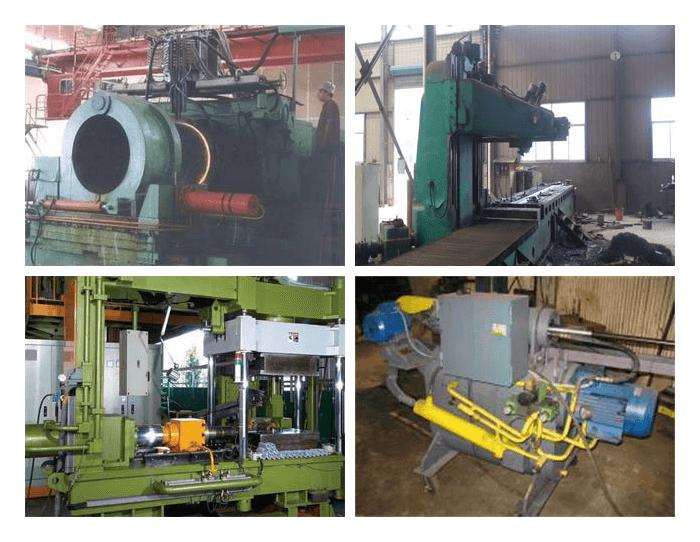

Equipment of Stainless Steel Pipe Fitting

stainless steel pipe fitting2

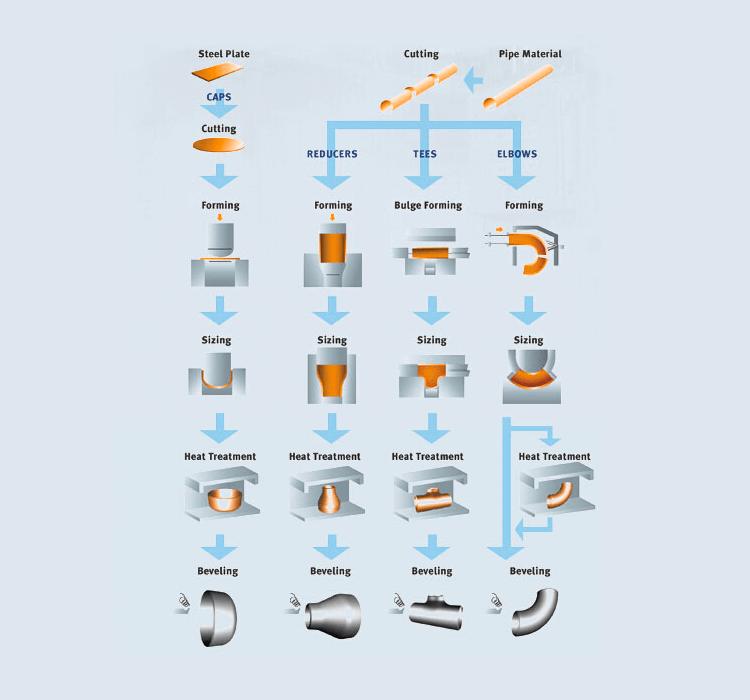

Manufacturing Process of Stainless Steel Pipe Fitting

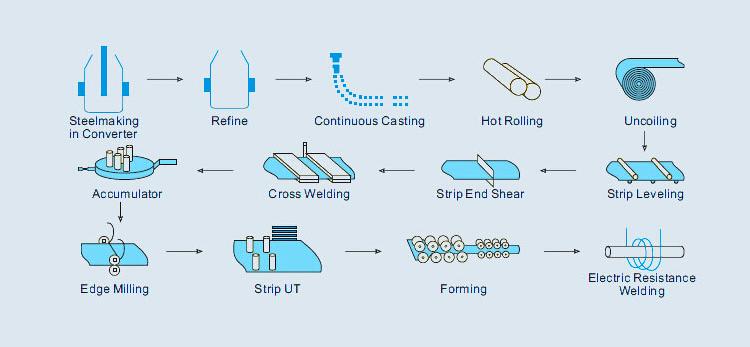

stainless steel pipe fitting3

stainless steel pipe fitting4
